CONFINED SPACE ENTRY & RETRIEVAL SYSTEMS ARRESTER BLOCKS


TRIPOD

MEGAPOD

K-POD

WINCH

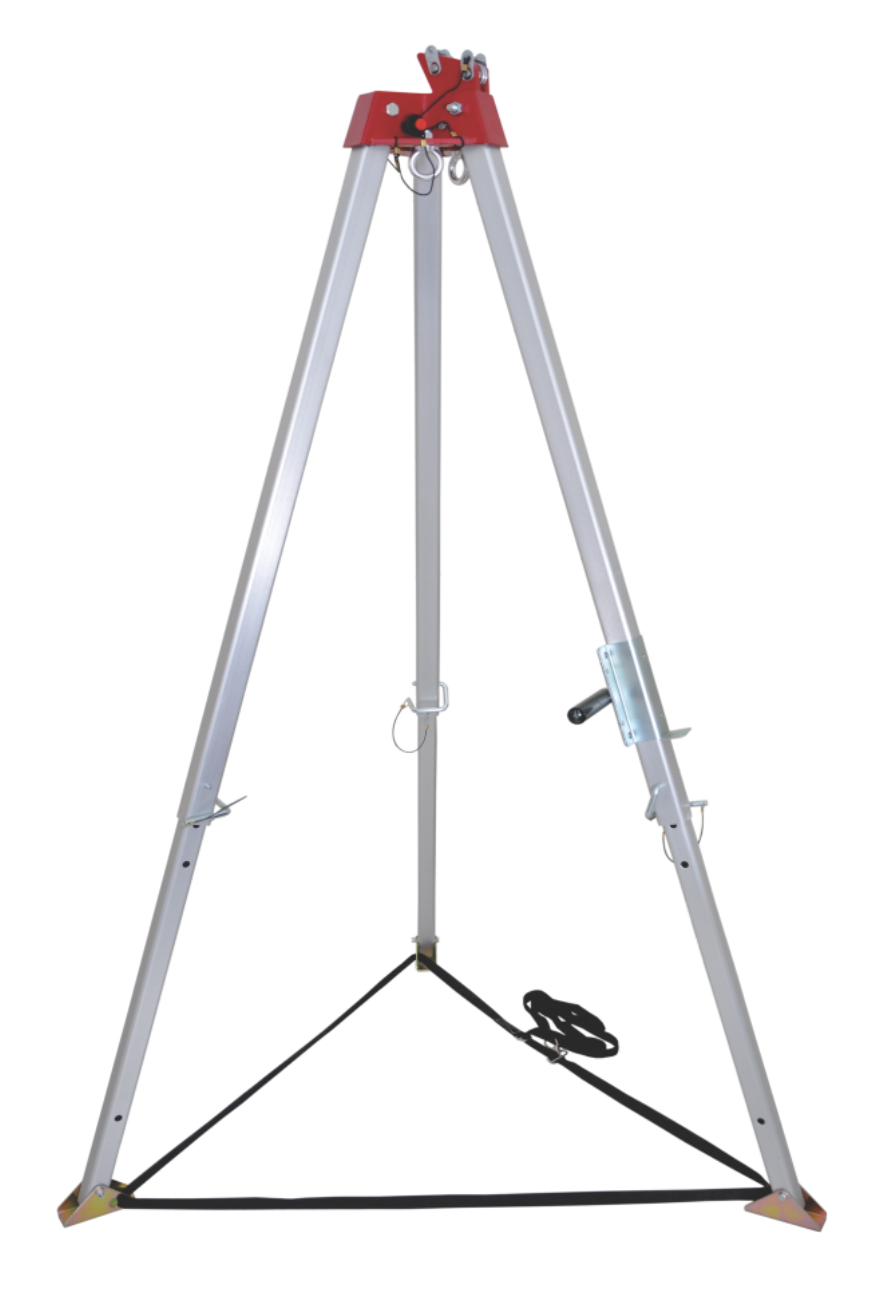

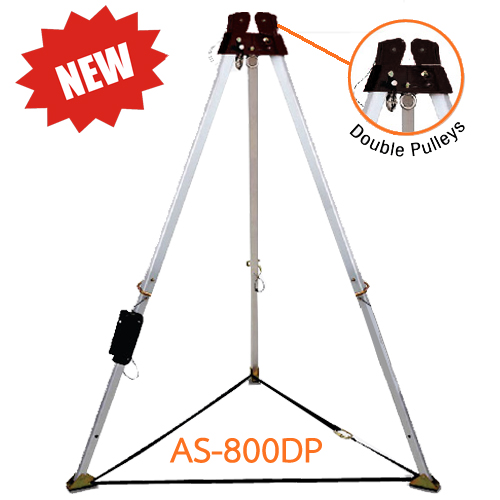

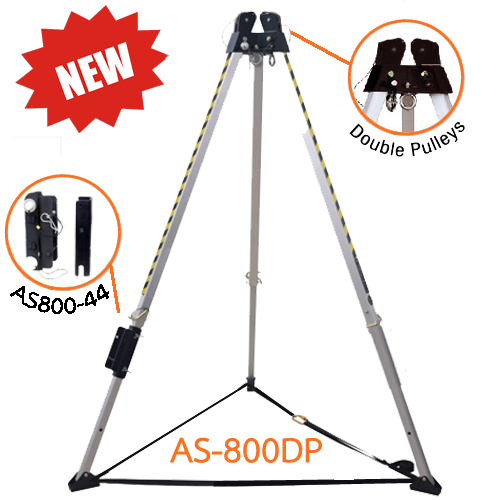

TRIPOD AS800DP
A-SAFE introduces Tripod AS800DP to the range. Come with improved design with one piece cast head and integrated double pulleys. This tripod has two anchor points.

  • Has Integrated double pulleys for both the Winch & Retrieval Blocks to be used in the correct orientation.
  • Provides independent passing over or cable from a Winch and Retrieval block.
  • No addition pulley & Karabiner is required in installation of Retrieval Block.
  • In AS800DP Retrieval Block is installed on the leg on the top if Tripod & the cable passes through the parallel leg of the Tripod, thereby imparting more stability & increased Strength to the system.
  • Comes with one Universal Bracket for installing Retrieval Block of all size.
  • Comes with two Mounted Universal brackets fitted in both the legs. This allow the user to easily mount the Winch & Retrieval Block when used with AS800-44 Winch bracket & AS800-45 Retrieval bracket.

Length
Specification
7 ft.
  • Fully adjustable telescopic legs, adjustable height from 1.15m to 2.15m
  • Wheelbase (Footprint) : 1.5m Diameter
  • Weight : 12.15 kgs
  • Maximum Load Capacity : 500kg
10 ft.
  • Fully adjustable telescopic legs, adjustable height from 1.9m to 3.07m
  • Wheelbase (Footprint) : 1.7m Diameter
  • Weight : 16.8 kgs
  • Maximum Load Capacity : 500kg

Mounting Brackets for Tripod : AS800DP
Mounting Bracket Picture Bracket used for Mounting
AS800-44 For all A-SAFE winches Ref.AS 801, AS 801(40), AS817, AS818, AS818(SR), AS8018(C)
AS800-456 For all Retrieval Blocks Ref. PCGS 10R, PCGS 20R, PCGS 25R, PCGS 30R

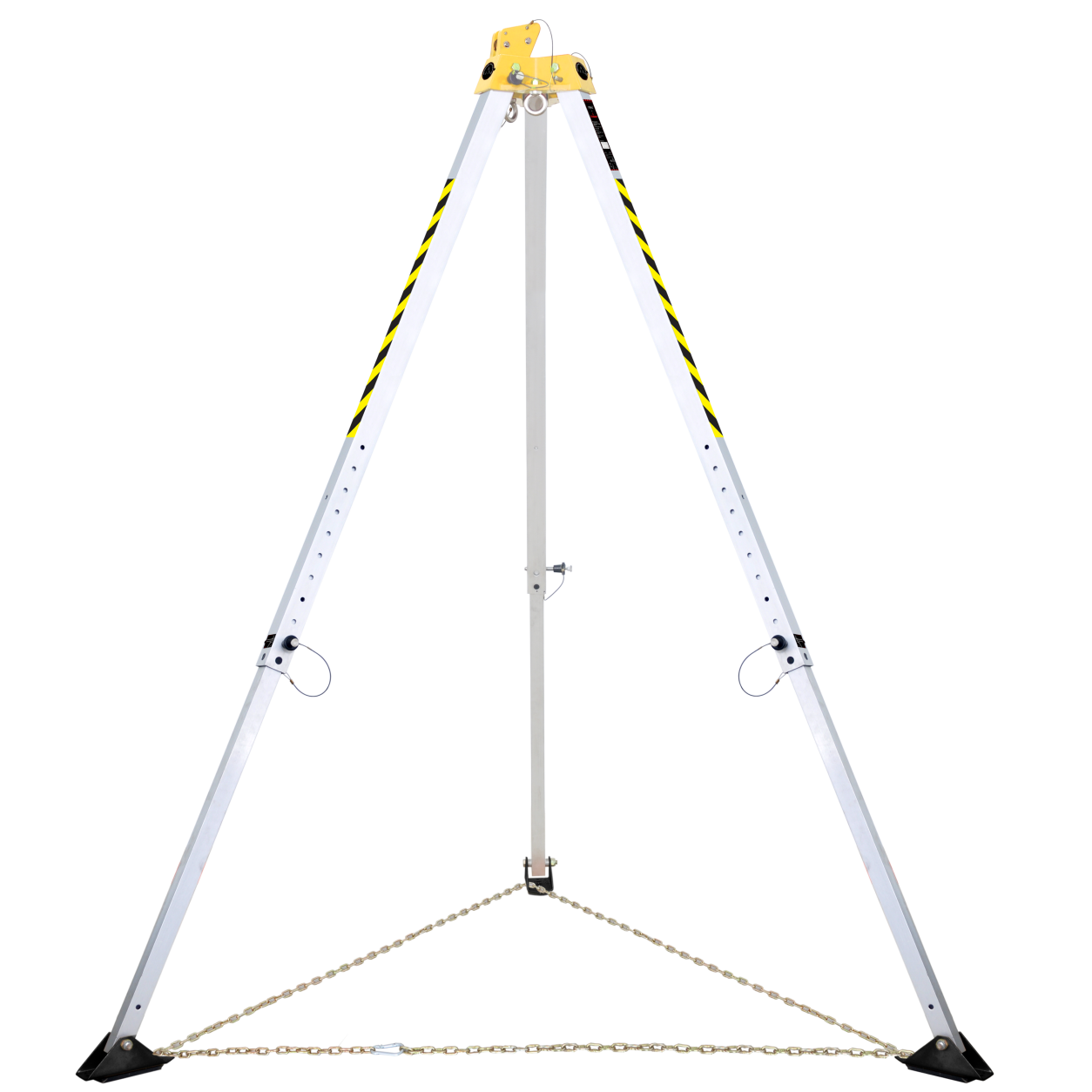

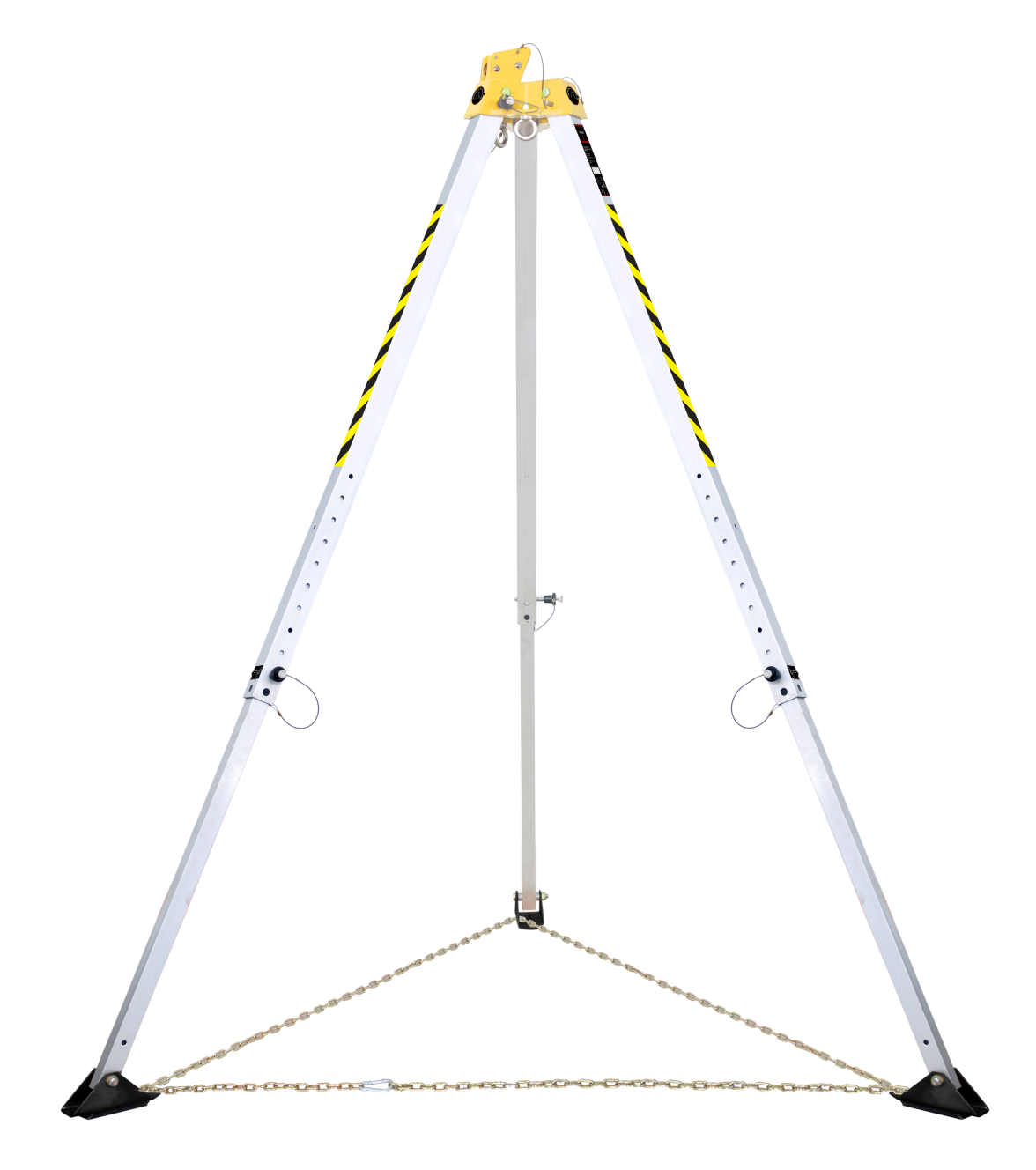

MEGA POD

When it comes to confined space entry / rescue, it is essential that the equipment operates oerfectly and quickly. Keeping this in mind A-SAFE introduces Megapod, a convenient product that provides a stable overhead anchorage point.
The Megapod comes with more widened and fully adjustable Aluminum Telescopic legs for use in particulary challenging area of wwork eg. Manholes, tanks etc.
FEATURES
  • The Megapod is equipped with high quality, rugged systems that will ensure top performance when it is needed the most.
  • A-SAFE Megapod is made from Aluminium hence is extremely lightweight and portable, easily set-up by just one worker and can be transported from one work area to another.
  • Ideal for confined space entry and emergency rescue applications. Can be used easily with all A-SAFE Winches and fall arrest devices eg. Blocks
  • Inner & Outer Adjustment can be achieved by Sliding Telescope Legs.
  • Cn be used with all the Winches namely AS 801, AS801-40M, AS 817, AS818, AS818(SR), AS818(C) & Retrieval Fall Arrester Blocks PCGS 30R with the help of their universal mounting brackets for whinches & blocks respectively strength of anchor point greater than 23 kN.
Ref. No Min. & MAX Distance between the Legs
AN-SA1707 0.85 m & 1.23 m
AN-SA1710 0.95 m & 1.72 m
Ref. No. Length Adjustable Height Wheelbase Footpoint (Ø) Weight Maximum Load Capacity Compllance
AS-SA 1707 7 ft 1.32m to 2.13m 1.21m to 2.0m 19.0kg 500kg EN 795:2012, Type B
& ANSI Z359.1-2007
AS-SA 1710 10 ft 2.22m to 3.14m 1.70m to 2.47m 23.83 kg
Mounting Brackets for Megapod : AS-SA17
Mounting Bracket Picture Bracket used for Mounting
AS-SA1725 For all A-SAFE winches Ref.AS 801, AS 801(40), AS817, AS818, AS818(SR), AS8018(C)
AS-SA1726 For all Retrieval Blocks Ref. PCGS 10R, PCGS 20R, PCGS 25R, PCGS 30R
Other significant features of A-SAFE Megapod
  • Locking legs
  • Simple detent pin style adjustment
  • Quick-mount mechanical device bracket
  • Safety chain to prevent movement, and safety shoes that incorporate a rubber sole for flat surfaces, and spiked edges for slippery surfaces.
RESCUE WINCH -Class A & Class B

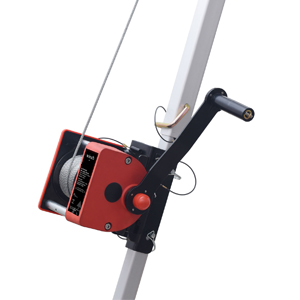

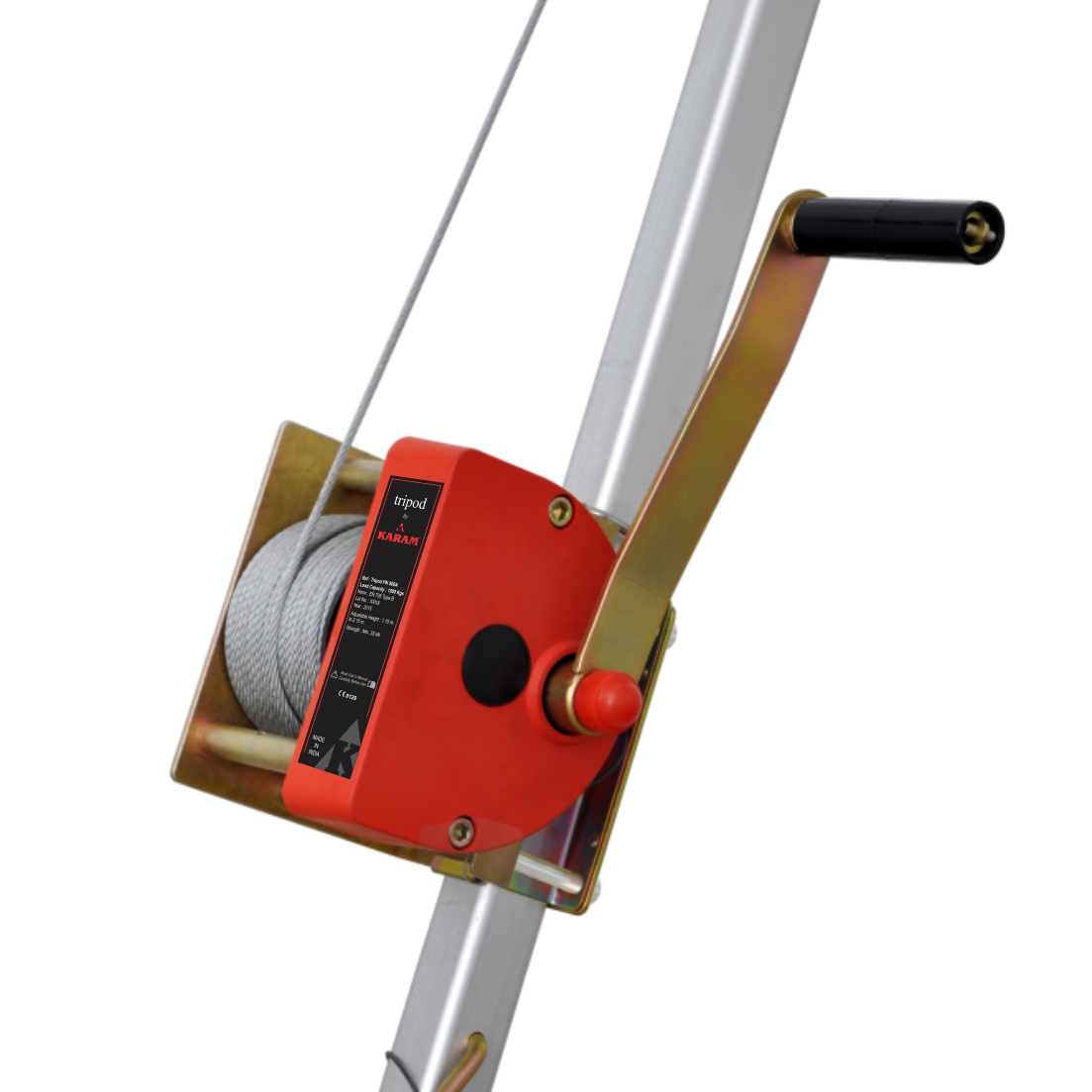

AS801 RESCUE WINCH

A-SAFE Whinches are the perfect solution for raising or lowering of personnel or material into confined spaces.
ClassA-Whinches: A-SAFE offers a range of class A Whinches Which provide retrieval for the purpose of rescue, by raising a victim from confined spaces.


DETAILS

ConnectorSteel Screw Locking Karabiner Ref. AS 112
  AS801-20M AS801-25M AS801-40M
Length of cable 20 mtrs 25 mtrs 40 mtrs
Winch Line Galvanized Steel wire rope of dia 4.5mmGalvanized Steel wire rope of dia 4.5mm
Compatibillity Can be mounted on Tripods, Megapod, Gexapod z & K-Pod with help their Universal mounting brackets respectively.
Conforms to EN 1496:2017 (Class A)

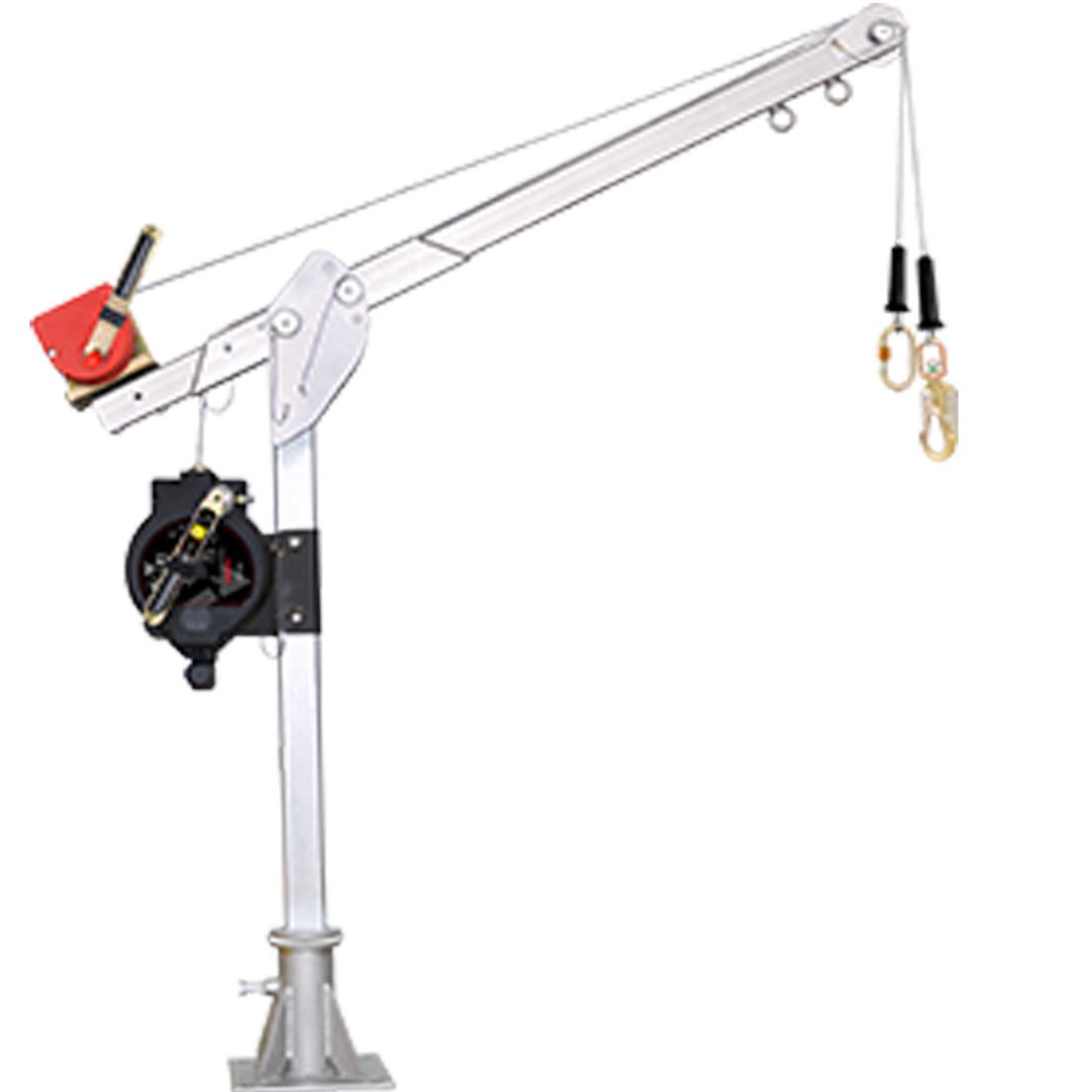

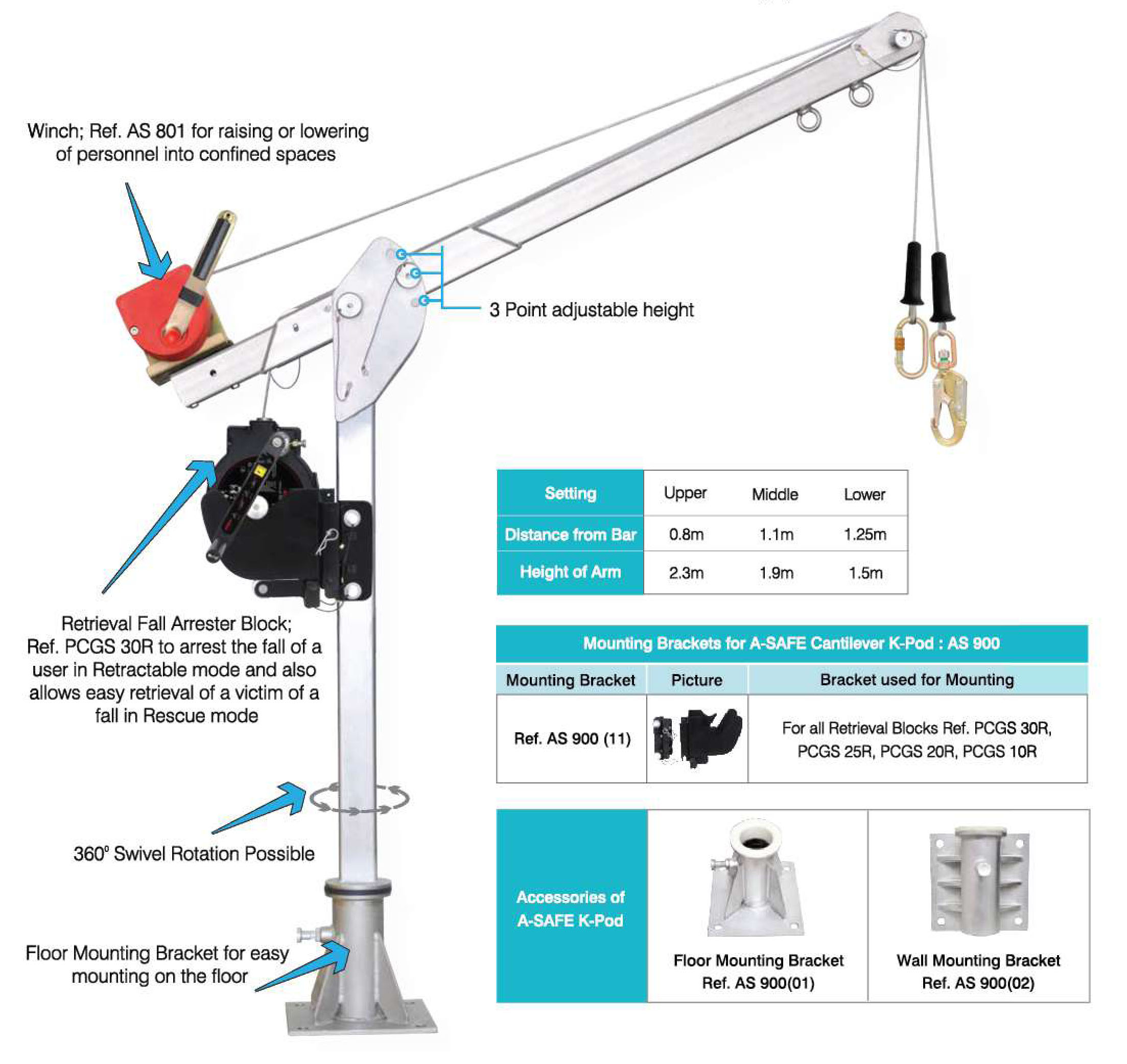

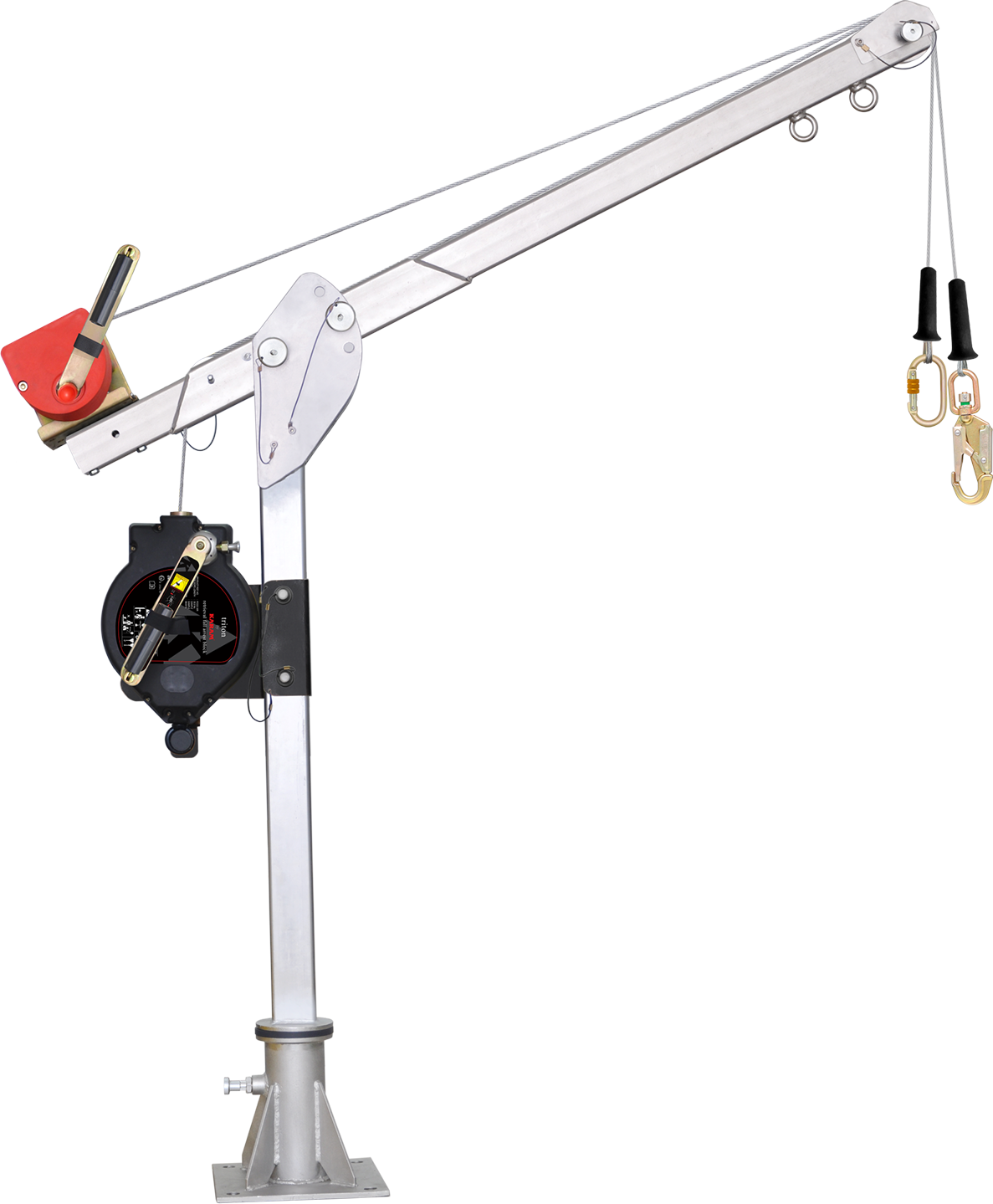

KPOD AS 900



  • A-SAFE introduces the new K-Pod which provides a safe and sure system for easy access to confined spaces. The K-Pod is an ideal choice to provide overhead anchorage which can be mounted on different bases and it conforms to EN 795 : 2012 Type A
  • The K-Pod is made of highly corrosion resistant stainless steel, and can swivel a complete 360 degrees on its mounted base, hence providing a versatile reach and access.
  • The unique feature is that the height of the Cantilever arm of the K-Pod is adjustable at 3 defined points, with upper height adjustment of 2.3m, middle arm adjustment of 1.9m, and lowered arm adjustment at 1.5m. This enables the use of the K-Pod even in those areas where the roof height is small.
  • The K-Pod can be easily mounted on the floor as well as on the wall through special floor and wall mounting brackets which are made available as per need. The K-Pod can also be mounted on the floor of heavy vehicles, hence making it extremely versatile in use.
  • A-SAFE Winch AS801, AS 801(40), AS 817 & AS 818 can be easily mounted on to the K-Pod with the help of stainless steel fasteners.
  • Retrieval Fall Arrester Block Ref. PCGS 30R, PCGS 20R & PCGS 10R can also be installed for easy retrieval & arresting the fall of the user using the specialized mounting brackets; Ref.PN AS 900(11).



A-SAFE Winches


ClassB-Whinches: These winches by A-SAFE are incorporated with secindary brake mechanism and are used if both raising and lowering npersonnel.
  • To be used for raising or lowering of personnel or material into confined spaces

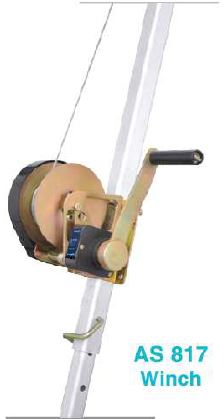

AS 817
Winch Line Galvanized Steel wire rope of dia 4.5 mm
Length of Cable 20 mtrs

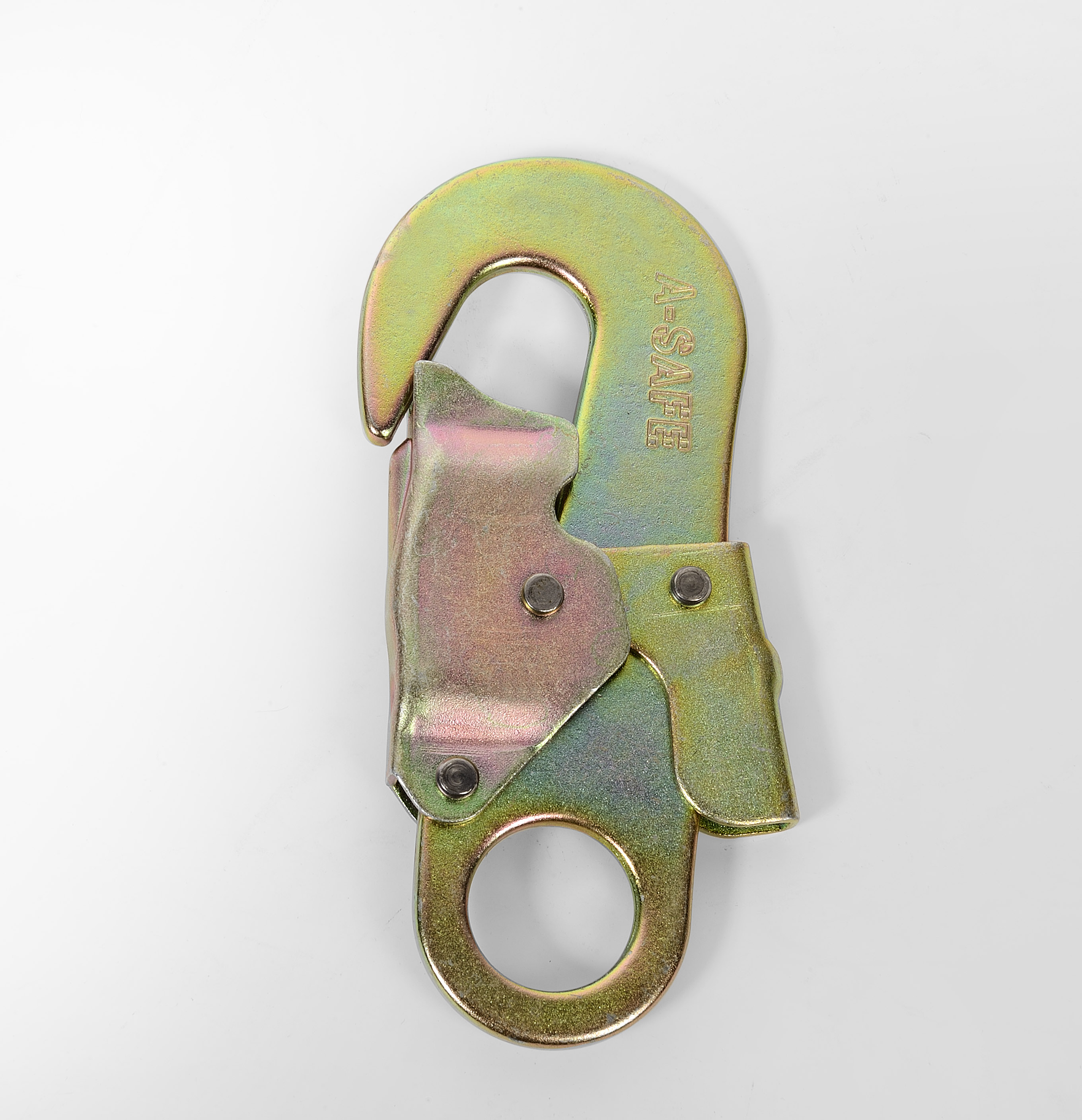

Connector Steel Swivel Snap Hook Ref AS 162
Compatibility Can be mounted on Tripod, Megapod, Hexapod & K-POD with the help of their universal mounting brackets respectively
Conforms to EN 1496 : 2017 (Class B)
Inbuilt shock Absorption

Maximum Lifting load capacity as per EN 1496: 135 kgs
Maximium Lifting load capacity as per machine directive 2006/42/EC: 250 kgs

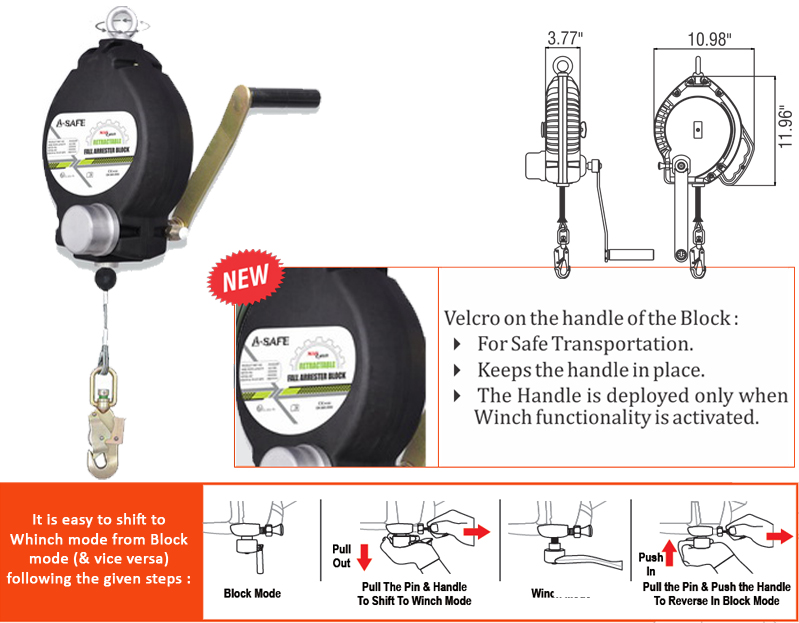

PCGS30R Retractable Block with Retrieval System




DETAIL
  • The locking pin on the side of the casing at the base of the handle allows this dual system to work in independent Fall Arrest & Winch modes.
  • Can be easily mounted on the leg of KARAM Tripod PN800 using specialized brackets
  • Minimum Breaking Strength > 12kN
  • Also available with SS Wire Rope instead of GI Wire Rope
  • Conforms to EN 360:2002 & EN 1496:2006 Class B
FEATURE
  • The Dual mode- helps easily movement of user while working in confined spaces
  • Retractable mode- enables easy mount of user in Confined Space. Also provides Fall Protection
  • Winch mode- enables easy retractable
  • Comes with PN 162 Snap Hook with Impact Indicator
